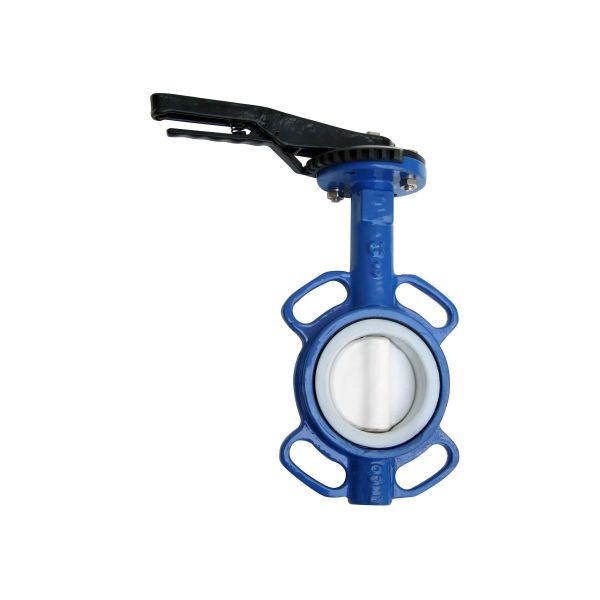

Wafer type Butterfly Valve with lever operator, body is ductile iron, seat is PTFE
1, PRODUCT DESCRIPTION:
Wafer Type Butterfly Valve With PTFE Coated Disc:
Design: EN593 / BS5155 / MSS SP-67
Class: PN10 / 16, 125/150Lbs
Face to face: BS5155, ISO5752 Series 13
Flange Connection: GB, DIN, BS, JIS, ANSI
Size: DN80-DN1600
| Size / Working Pressure | Operator | Material of Main Parts |
| DN80-DN1600: PN10-16 | Handle Lever, Worm Gear, Electrical Actuator, Pneumatic Actuator | Body: Cast Iron (ASTM A126CL. B , DIN1691 GG25, EN 1561 EN-GJL-200; GB12226 HT200); Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10);
Stem: Zinc Plated Steel; Stainless Steel (ASTM A276 Type 316, Type 410, Type 420; ASTM A582 Type 416);
Disc: PTFE Plated Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15, GB12227 QT450-10);
Seat: Viton;
End Cap: Cast Iron (ASTM A126CL. B ,DIN1691 GG25, EN 1561 EN-GJL-200);
Ductile Cast Iron (ASTM A536 65-45-12, DIN 1693 GGG40, EN1563 EN-GJS-400-15);
Bolt: Zinc Plated Steel;
Taper Pin: Stainless Steel: ASTM A276 Type 304, Type 316; EN 1.4501;
O-Ring: NBR, EPDM, Neoprene, Viton;
Bushing: PTFE, Lubricated Bronze;
Key: Carbon Steel |
2, PACKAGEING & SHIPPING:
The normal package is wooden box(Size: L"W*H). If export to european countries, the wooden box will be fumigated. If container is too tigher, we will use pe film for packing or pack it according to customers special request.
1. Product packed by Standard Export Carton or Upon Requests of customer
2. We can offer products on time, shipping by ocean,by air or DHL, Fedex, TNT,UPS
3, PRODUCT FEATURE:
1. Integral gluing: The valve adopts integral gluing. Its good covering performance and precise geometric size ensure reliable sealing and long service life.
2. Light weight: The valve body is made of ductile iron, light weight and easy to install.
3. Flat-bottomed seat: The bottom adopts the same flat-bottomed seat design as the water pipe, which produces no sundries and is more reliable in sealing.
4. Corrosion resistance: Inner cavity is coated with non-toxic epoxy resin to prevent corrosion and rust. It can be used not only for raw drinking, but also for sewage system.
5. Three "O" seals: Stem is sealed with three O-rings, with small friction resistance, light switch and no leakage.
4, FAQ:
Q: Can i get a sample?
A: yes, of course, we looking forward to establishing a long term relationship with you.
Q: Reasons for choosing our company?
A: Our most outstanding advantage is ability of integrating resources. Multiple brands, multiple choices, multiple price ranges. Providing most suitable valves for you and your customers. Contact supplier now, get a customized solution and a great price!
Q: How soon can our order be delivered?
A: All items will be shipped on or before the date we agreed.
Q: Can you provide OEM/ODM?
A: Yes, we can. Contact supplier for more details.
Q: Payment methods accepted?
A: T/T, L/C or any way you want. Please Contact supplier let us know.
Q: Delivery methods provided?
A: We provide all the logistics methods in Ali logistics.
